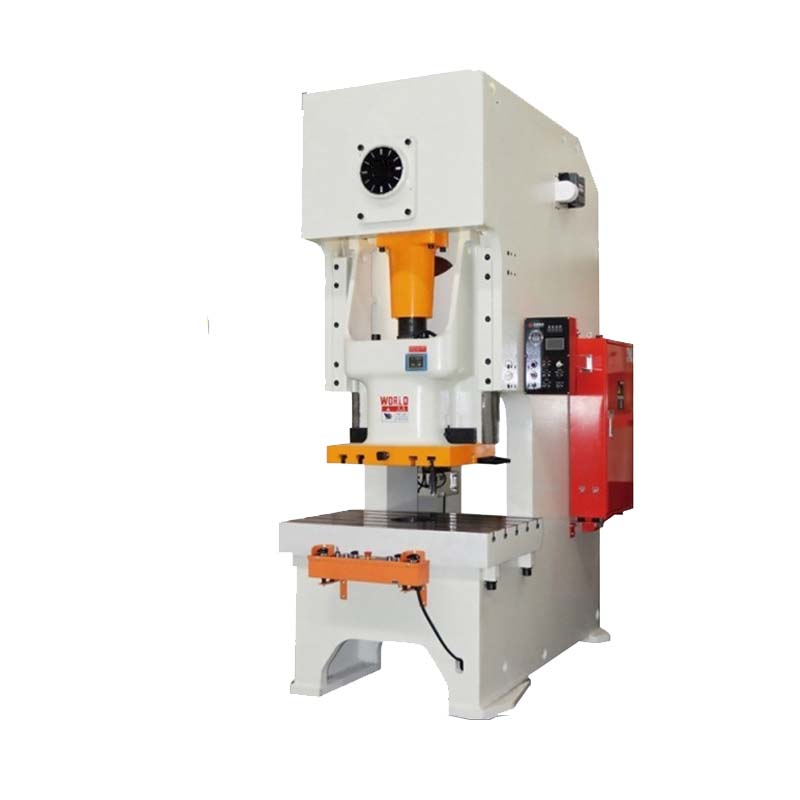

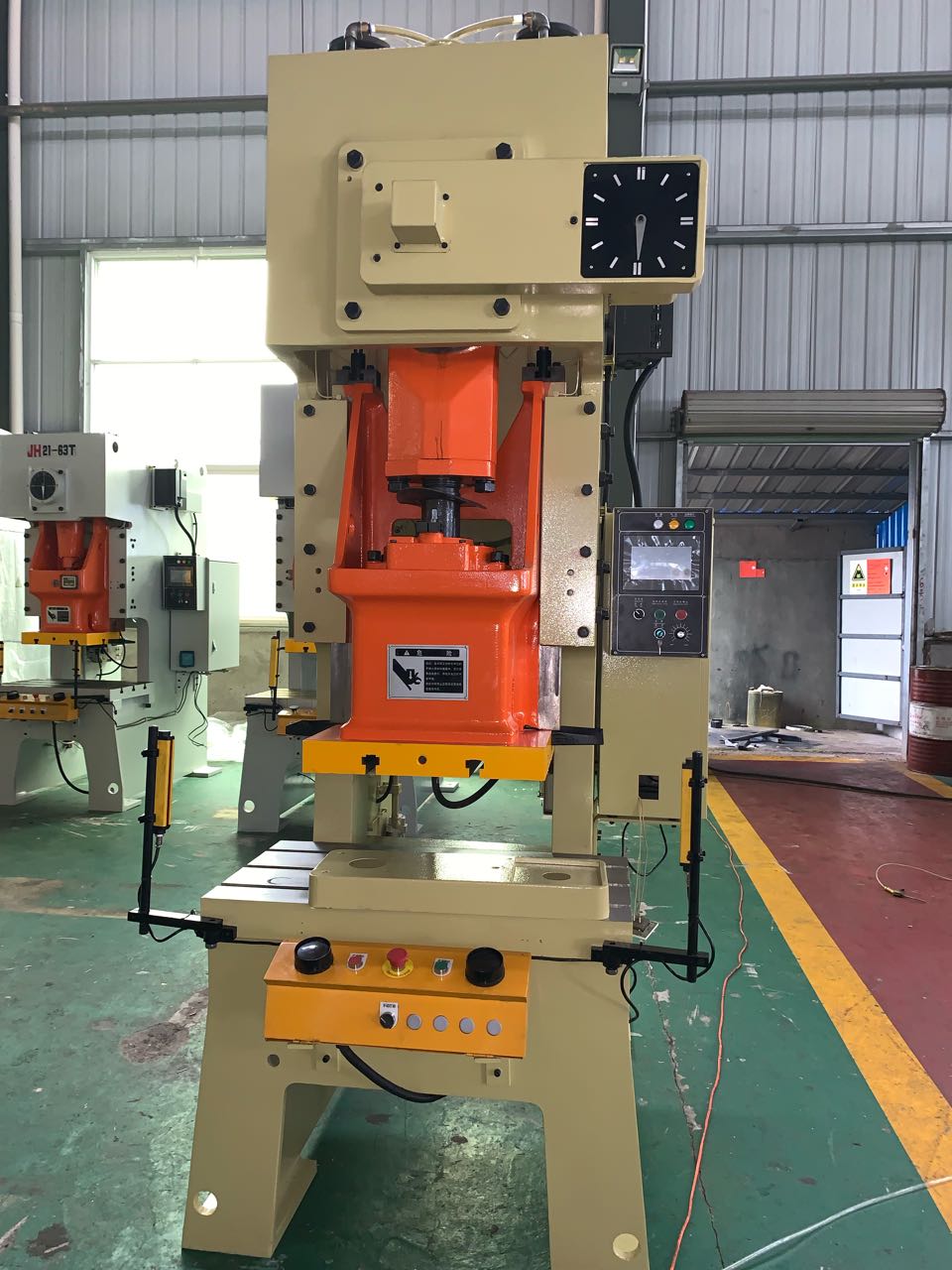

1:The fuselage adopts high-quality Q235A steel plate welded structure, adopts open C-shaped structure, thermal aging treatment to eliminate internal stress, and has good rigidity. After nitrogen quick freezing, it is assembled into the fuselage, and it is allowed to expand until the two are integrated within a certain period of time before finishing. So the accuracy is fully guaranteed within 0.03mm. The bottom foot is equipped with a shock-absorbing pad, which has a high-strength shock-absorbing effect.
2 :The crankshaft is placed vertically, with compact structure and beautiful appearance; the material is forged and forged from 42CrMo, and the material is inspected by professional testing instruments to ensure that the material and density meet the standards. Grinding and processing, the complete accuracy is guaranteed to be within 0.01mm.
3: The slider adopts high-quality raw material casting structure, which has extremely high shock absorption effect. Tempered to eliminate internal stress. The hexahedral rectangular guide rail is adopted, and the guide rail material is made of alloy copper, which has high wear resistance, good stability and high precision. Moulding height adjustment device: closed height electric adjustment, the display accuracy of the slider moulding height is 0.1mm. The built-in transmission turbine ensures smoothness and precision when adjusting the die height. Hydraulic overload protection device is used in the slider: the gas-liquid type exceeds about 10% of the rated tonnage to produce an overload response, and the slider automatically stops to ensure that the main components such as the fuselage are not damaged. Pneumatic balance cylinder is used to balance the weight of the slider and the upper die, with strong stability and good precision retention;
4 :Adopt pneumatic combined friction clutch-brake, which is low inertia dry clutch and brake. Adopt double valve, sensitive action, safe and reliable, with inching, single and continuous operation specifications; stable combination, less wear and long life;
5 :Main drive: The friction parts such as gears and gear shafts are hardened and heat treated before fine grinding. The accuracy is guaranteed to be within 0.01mm, with extremely high wear resistance and balance, and ultra-low friction sound (the whole machine is running. The noise limit in the process is: within 73dB(A)). The flywheel is driven by the domestic high-quality main motor and AC frequency converter as the main drive, with stable performance to ensure the accuracy and life of the punch.
